Capabilities
Machining Capabilities
R.A.E. Tool & Manufacturing Inc. is a precision machining company located in New Lenox, Illinois. Since 1996, we have supported manufacturers, engineers, and OEM suppliers with high-quality machined parts and reliable production services.
Our shop combines modern CNC equipment, experienced machinists, and strict quality procedures to produce accurate components for demanding industrial applications. We support projects from prototype to full production and coordinate finishing services so customers receive parts ready for use.
CNC Machining
We provide complete CNC machining services for custom components used in a wide range of industries including electrical equipment, automotive, agricultural machinery, semiconductor equipment, and industrial manufacturing.

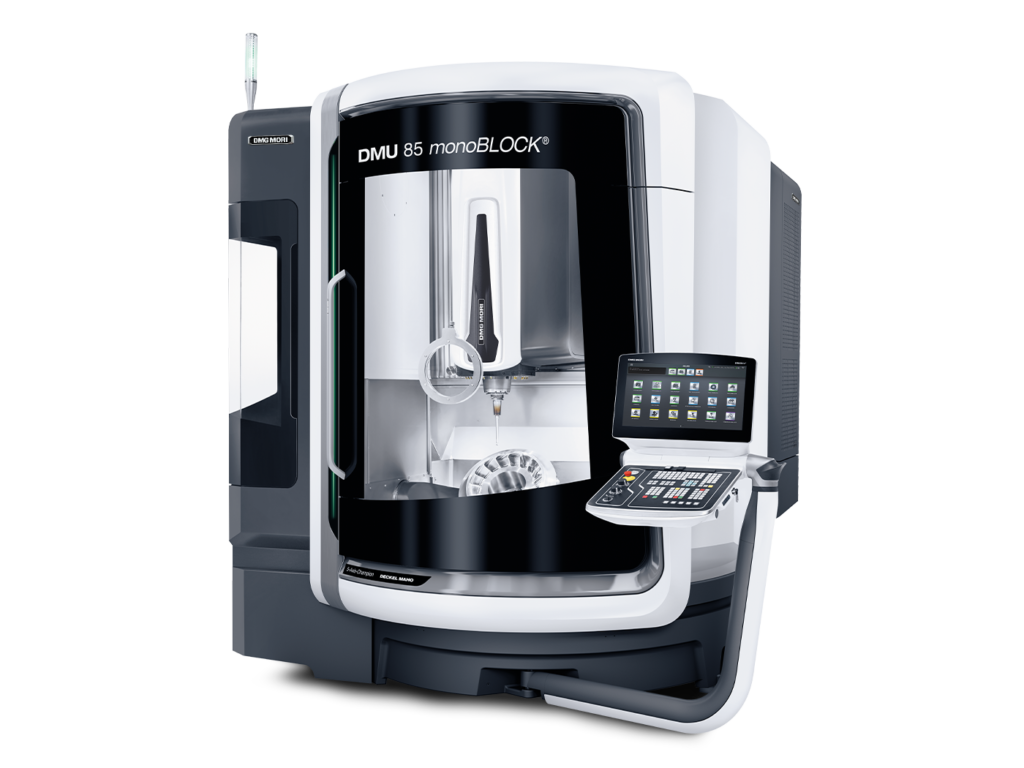

Milling
Our CNC milling department handles complex parts requiring precision and repeatability.
- 5-axis machining
- 4-axis machining
- 3-axis machining
Multi-axis machining allows us to produce intricate features in fewer setups, improving accuracy and reducing lead times.
Turning
Our turning department manufactures round and cylindrical components with consistent tolerances.
- Dual spindle turning
- CNC turning centers
- Okuma machines
We regularly produce shafts, bushings, housings, pins, and custom turned components.
Additional Capabilities

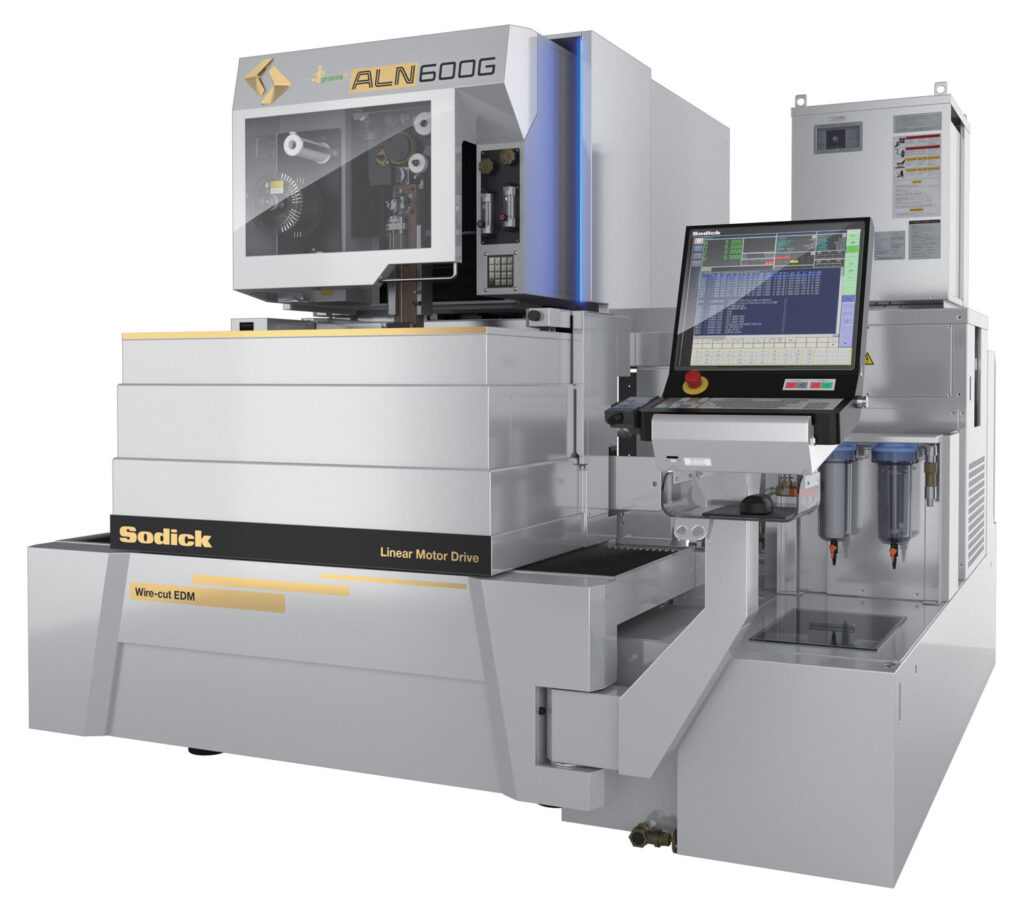

Wire EDM
Wire EDM machining allows us to produce extremely precise features, tight internal corners, and parts made from hardened materials that cannot be cut with traditional machining methods. This process is ideal for tooling, precision components, and detailed geometries.

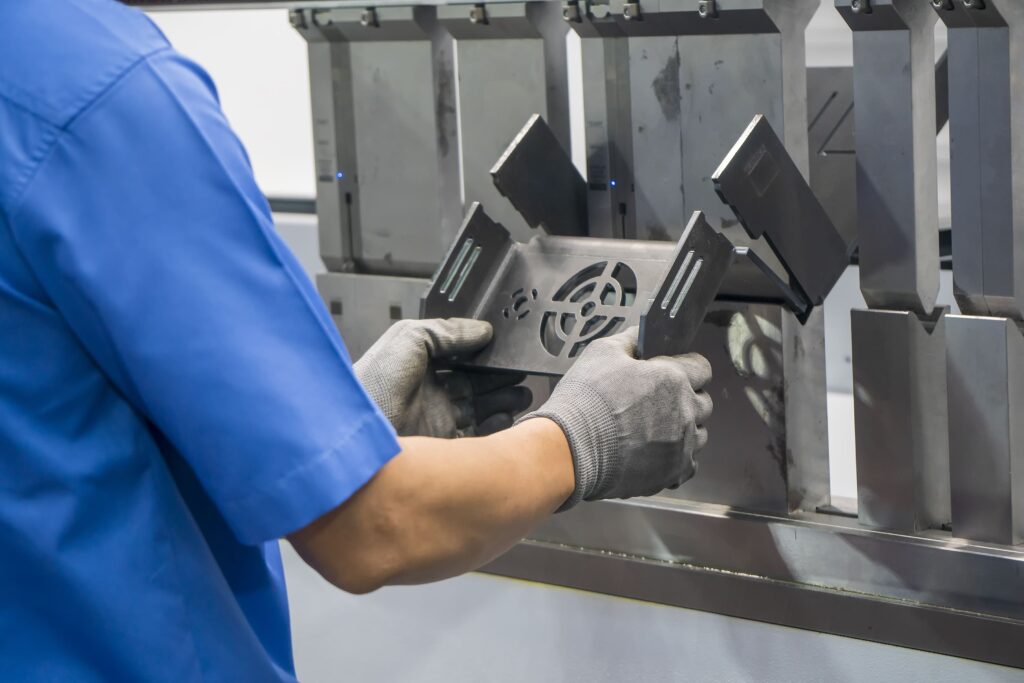

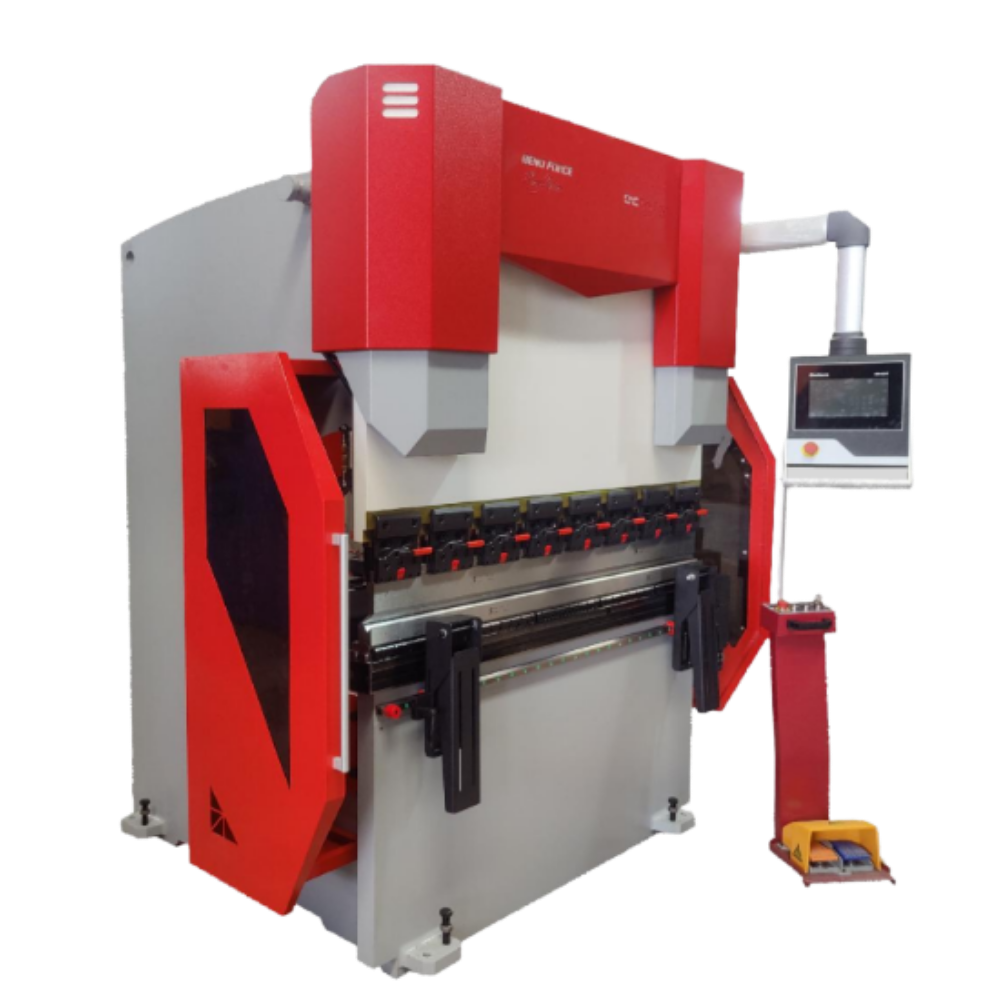

CNC Bending
We provide CNC bending for formed metal components that require consistent angles and repeatable results.

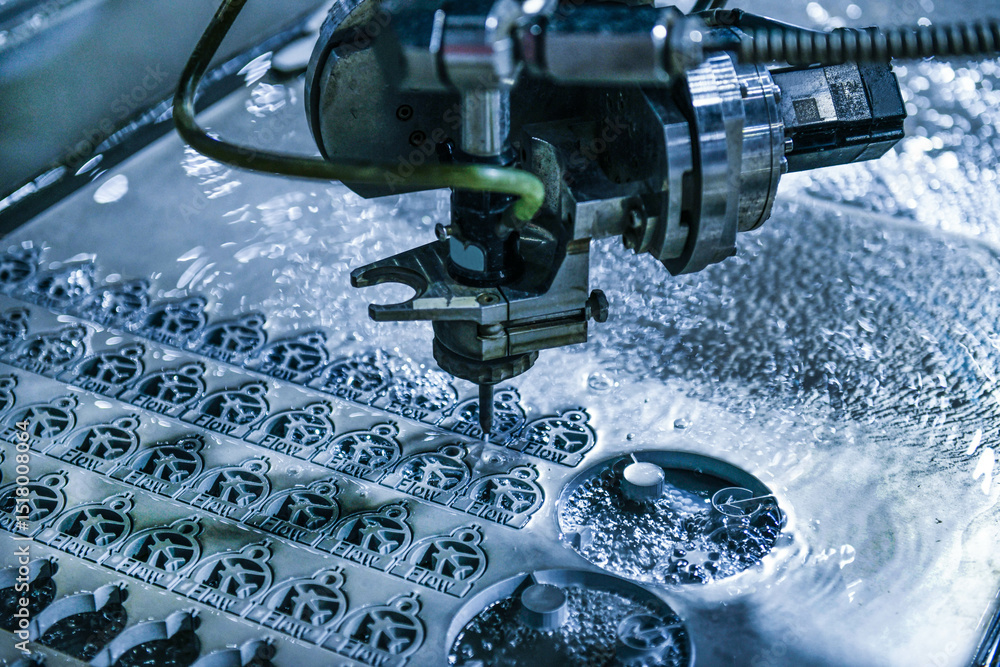

Water Jet
Water jet cutting allows us to cut a wide range of materials without heat distortion. It is well suited for detailed shapes, thicker materials, and applications where maintaining material properties is important.
Welding
Our welding services support fabricated assemblies, fixtures, and structural components.
Brazing
We provide brazing services for components that require strong, reliable joints without distorting the base material. This process is ideal for assemblies that demand durability, precision, and consistent performance.
Assembly
We offer assembly services to deliver parts ready for installation or use. Our team can combine machined components and hardware to simplify procurement and reduce handling for our customers.

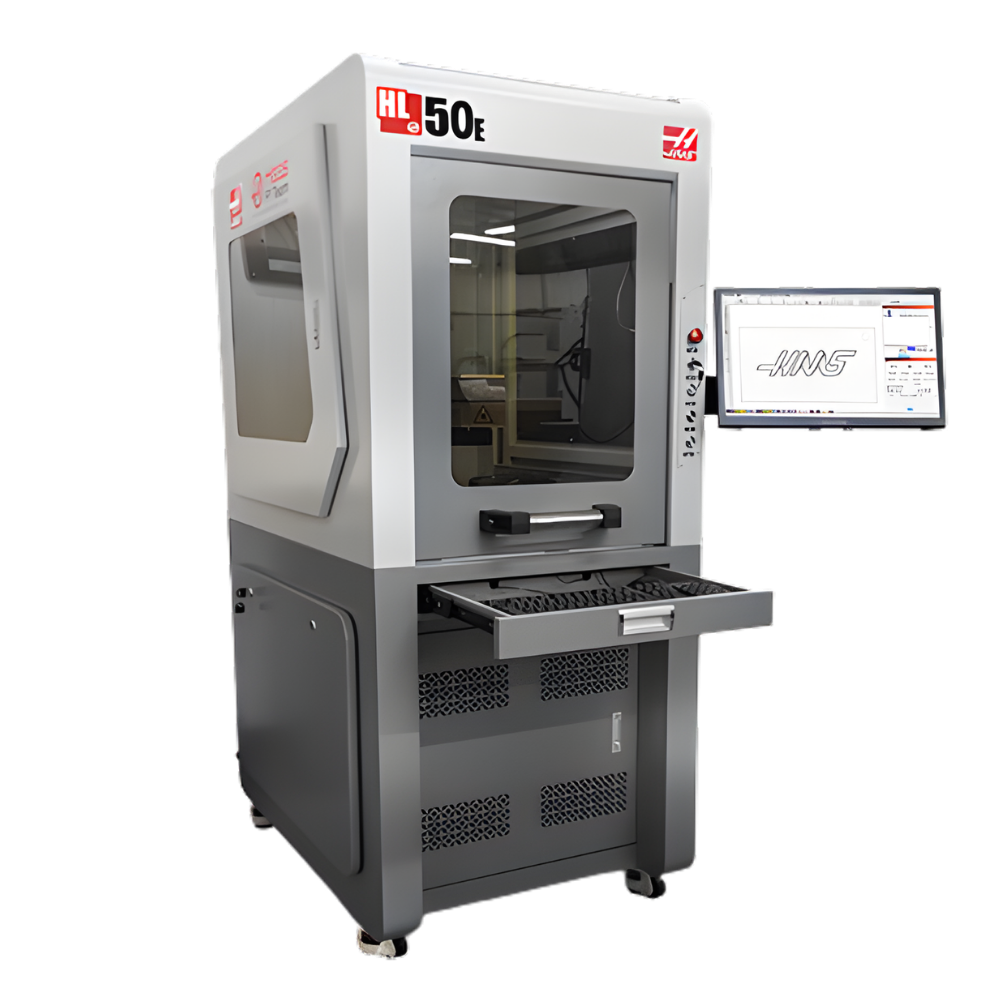

Laser Engraving Technology
We offer laser engraving for part identification, serial numbers, and permanent markings required for traceability.

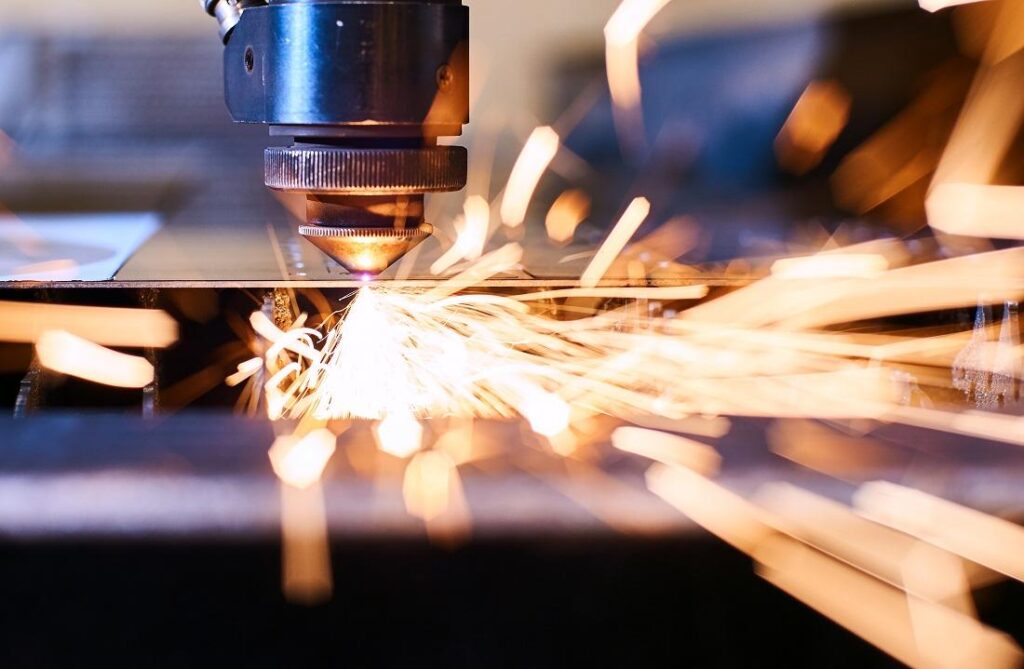

Laser Machining
Laser machining is used for precise cutting and detailed material processing where traditional machining is not suitable.

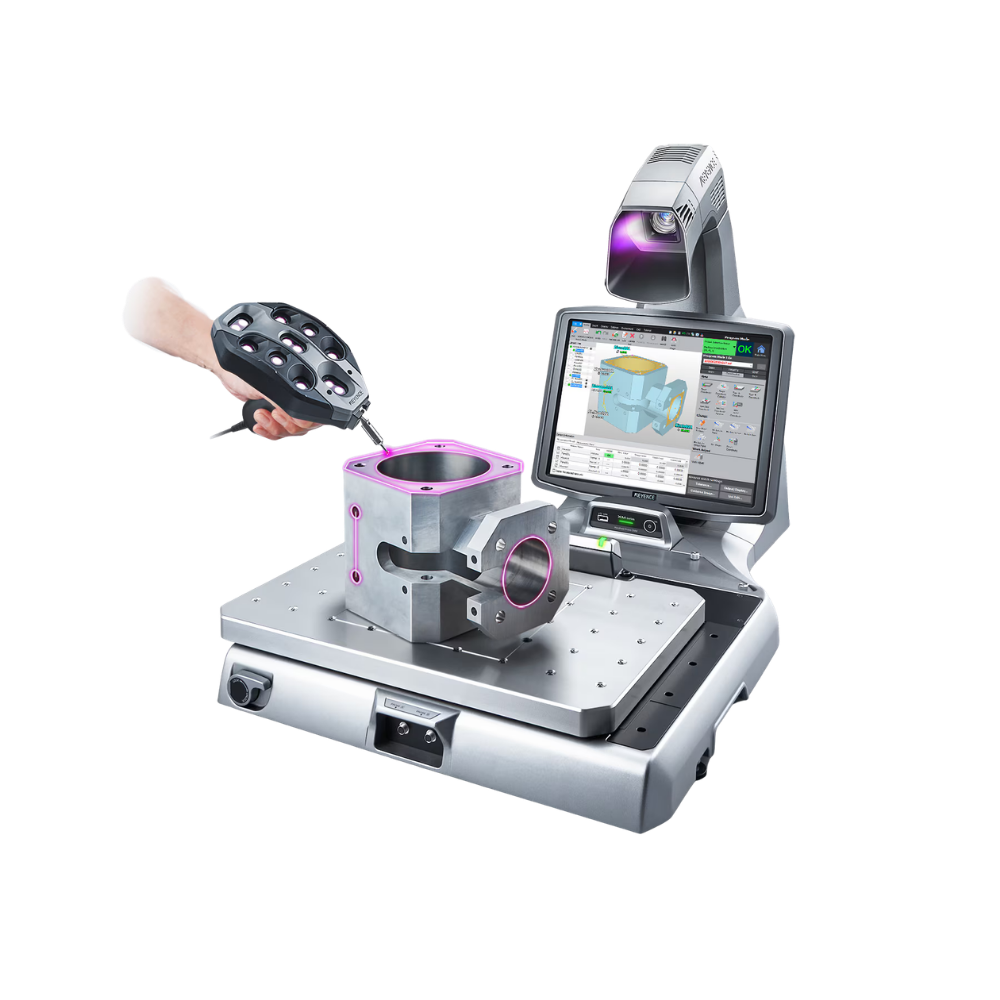

Quality Assurance
Quality is monitored throughout the entire manufacturing process.
In-Process Quality Control
Parts are inspected during machining to verify tolerances and dimensions before production continues. This helps prevent errors and ensures consistency.

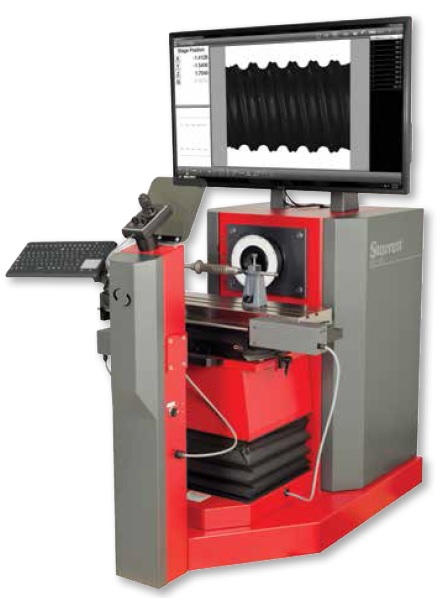

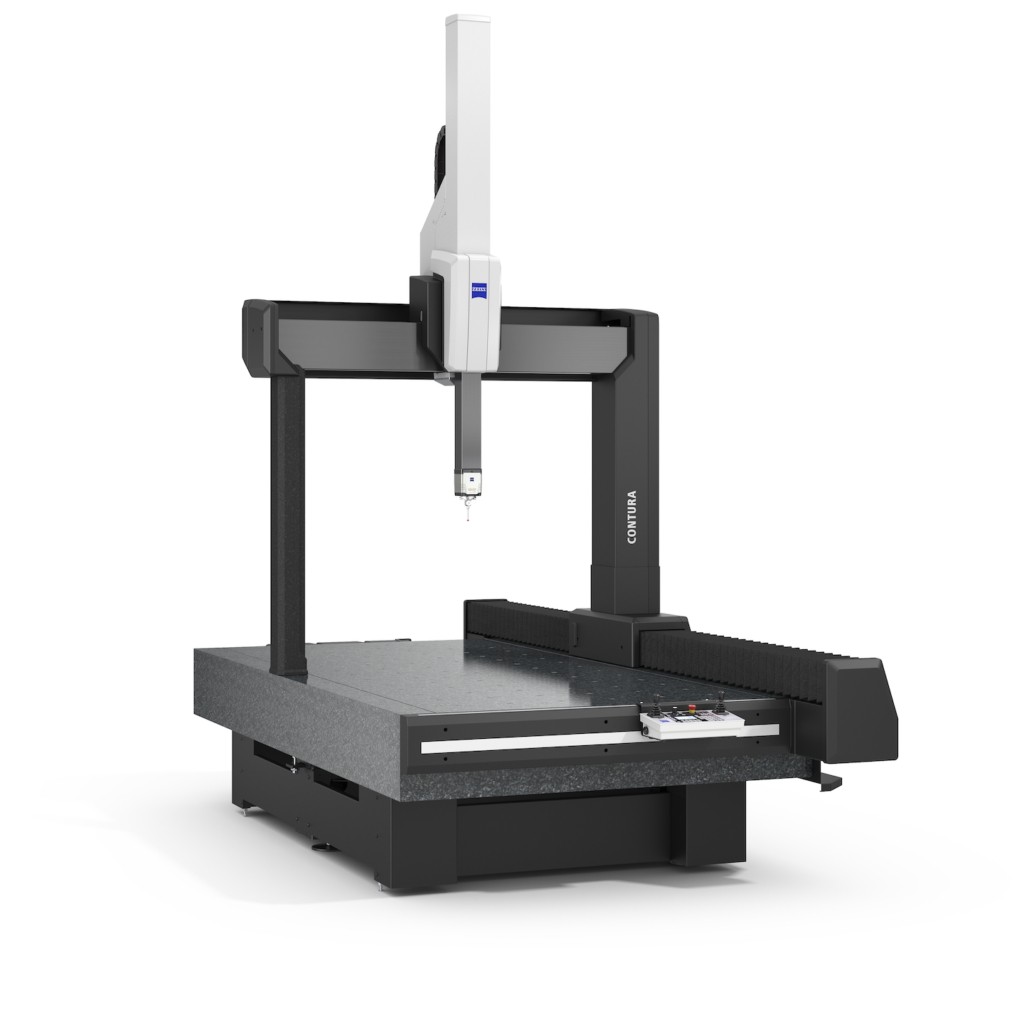

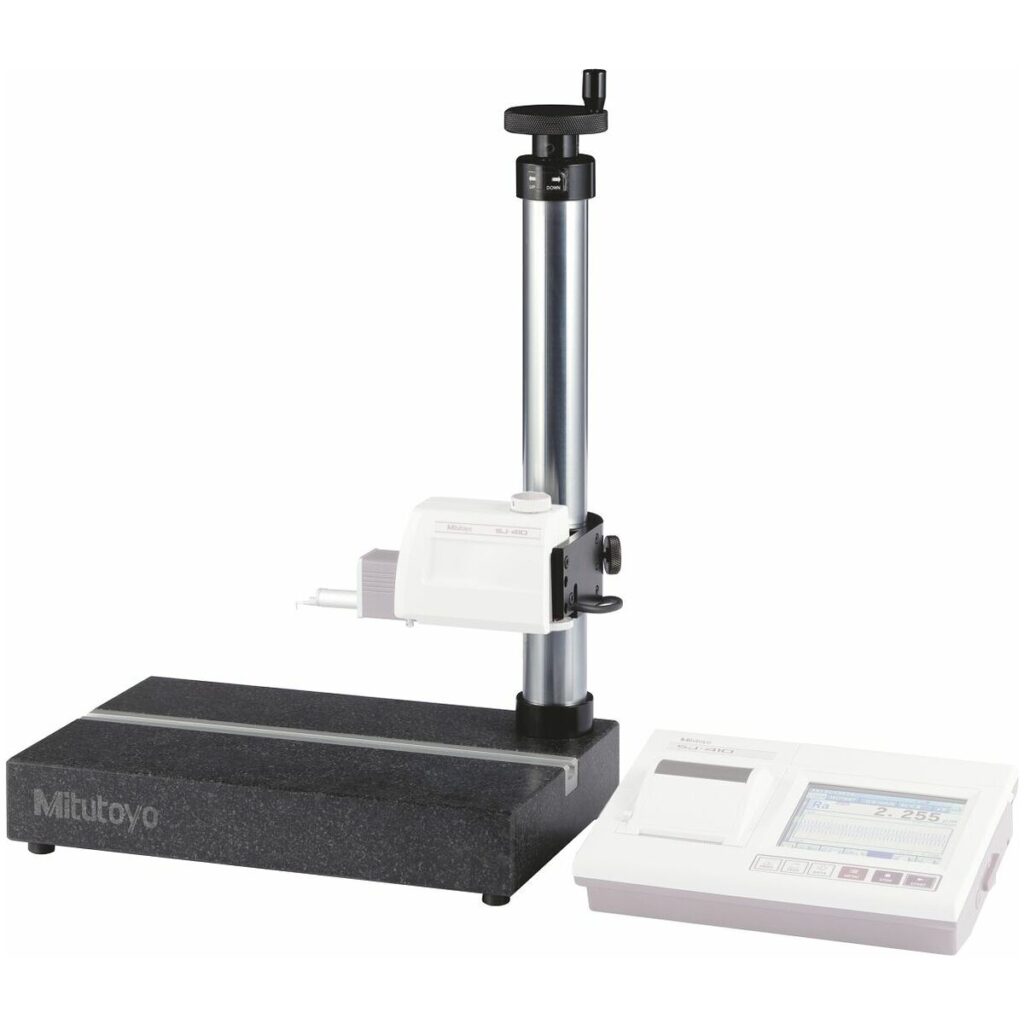

Final Inspection and Testing
All completed parts undergo final inspection before shipment to confirm they meet customer drawings and specifications.
Managed Finishing Services
To simplify procurement, we coordinate finishing operations through trusted partners and deliver completed parts ready for installation or assembly.
- Anodizing
- Silver Plating
- Zinc Plating
- Chrome Plating
- Copper Plating
- Powder Coating
- Heat Treatment
- Black Oxide
From Prototype to Production
Whether you need a single prototype or recurring production runs, R.A.E. Tool & Manufacturing Inc. can support your project with consistent quality and reliable delivery.
Have a project ready?
Visit our Request a Quote page and upload your drawings.
